Nano SP Plus Low Level Powered Access Scissor Lift - 2.5 m

SKU: LJLPO-0005  |  Model: Nano SP Plus
£14,832.00
£12,360.00

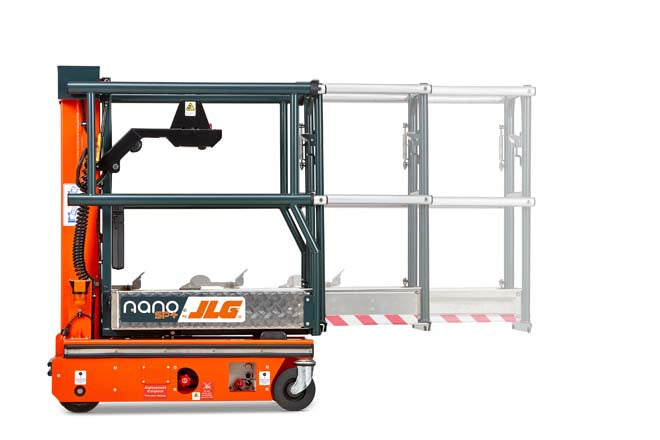

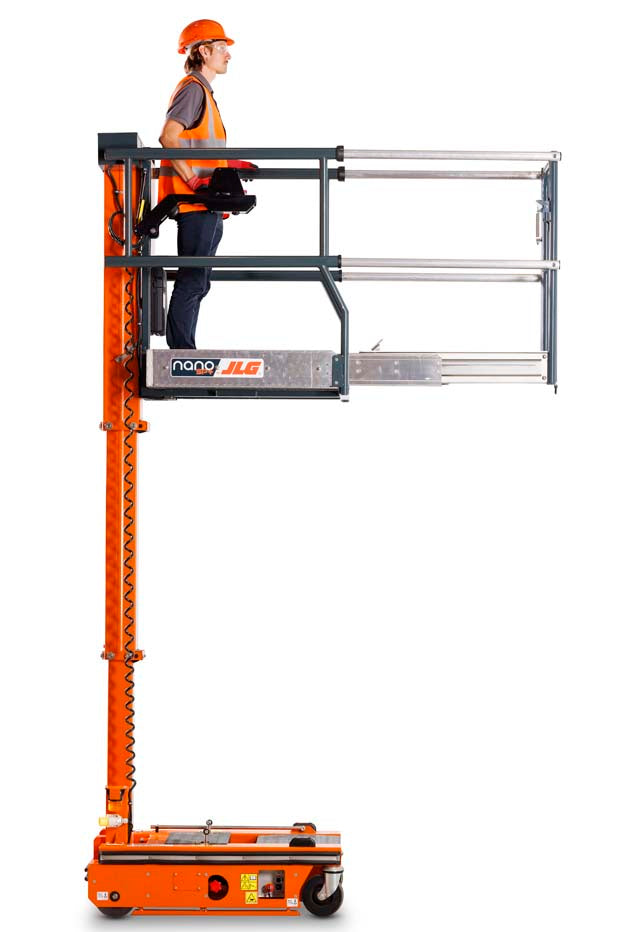

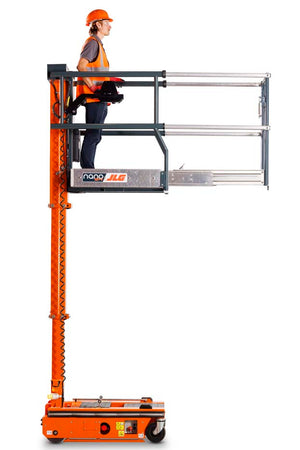

The Nano SP Plus provides the user with a small footprint but a larger extendable platform. The SP Plus extends an extra 1m and is suitable for indoor and outdoor work.

  • Weight
    540 KG
  • Manufacturer
    JLG
  • Product Material
    Steel
  • Model Number
    Nano SP Plus
  • Product Colour
    49
  • Platform Height
    2.5 m
  • Working Height
    4.5 m
  • Closed Dimensions
    1.2 x 0.75 x 1.59 m (L x W x H)
  • Tread Additional Information
    Please Note The Top Section or Platform is Included In The Number Of Treads.
  • Additional Information
    Outreach Cantilever Deck To Cage Edge: 1.0 m
    Basket Dimensions: 1.0 x 0.73 m
    Basket Dimensions Including Cantilever: 2.0 x 0.73 m
    Working Footprint: 1.20 x 0.75 m
    Safe Working Load: 200 kg Main Platform, 120 kg Cantilever Deck
    Maximum Manual Force: 200 N
    Maximum Gradient For Operation: 1.8 Degrees
    Maximum Wind Force: 12.5 m/sec
    Maximum Weight Including Payload: 540 kg + 200 kg = 740 kg
    Maximum Castor Point Load: 210 kg (2.1kN)
    Drive Speed Maximum: 4.6 KpH
    Drive Speed Minimum: 0.7 KpH


    Battery Charger Specifications:

    Input Voltage: 90-256V AC
    Frequency: 45-65 Hz
    Output: 24V DC 8A

    Power Source/Drive:
    Standard 24V DC Electric Motor, DC Motor/Gearbox Drive



  • Image Information
    We try to have images for every product however some images aren't available from our suppliers. Please double check the specifications, images are for illustrative purposes only.
