Nano SP Low Level Powered Access Scissor Lift - 2.5 m

SKU: LJLPO-0004  |  Model: Nano SP
£13,432.00
£11,193.33

The Nano SP provides the user with a small footprint but a large extendable platform. The Nano SP has a range of safety features, a platform height of 2.5 m and is suitable for indoor and outdoor work.

  • Weight
    500 KG
  • Manufacturer
    JLG
  • Product Material
    Steel
  • Model Number
    Nano SP
  • Product Colour
    49
  • Platform Height
    2.5 m
  • Working Height
    4.5 m
  • Closed Dimensions
    1.22 x 0.75 x 1.59 m (L x W x H)
  • Additional Information
    Outreach Cantilever Deck To Cage Edge: 0.5 m
    Basket Dimensions: 1.0 x 0.73 m
    Basket Dimensions Including Cantilever: 1.5 x 0.73 m
    Working Footprint: 1.22 x 0.75 m
    Safe Working Load: 200 kg
    Maximum Manual Force: 200 N
    Maximum Gradient For Operation: 0 Degrees
    Maximum Wind Force: 12.5 m/sec
    Maximum Weight Including Payload: 500 kg + 200 kg = 700 kg
    Maximum Castor Point Load: 210 kg (2.1kN)
    Drive Speed Maximum: 3.0 KpH
    Drive Speed Minimum: 1.0 KpH
    Maximum Wheel Force: 2.2kN
    Gradeability: 40%
    Power Sound Level: Less than 70 DBa

    Battery Charger Specifications:

    Input Voltage: 180-265v AC
    Frequency: 45-65 Hz
    Output: 24V DC 7/8A

    Power Source/Drive:
    Standard 24V DC Electric Motor, 24V DC Motor/Gearbox Drive



  • Image Information
    We try to have images for every product however some images aren't available from our suppliers. Please double check the specifications, images are for illustrative purposes only.

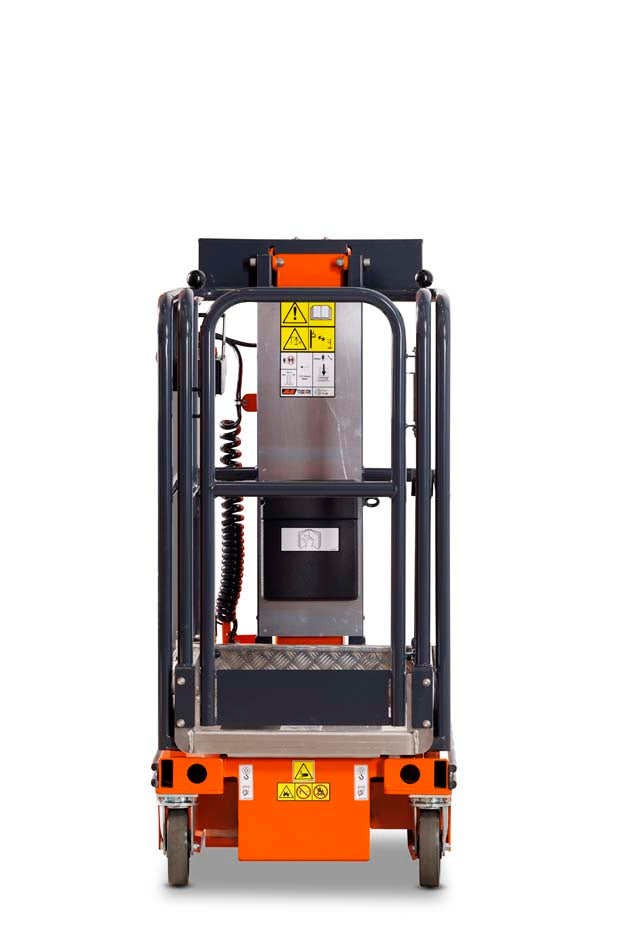

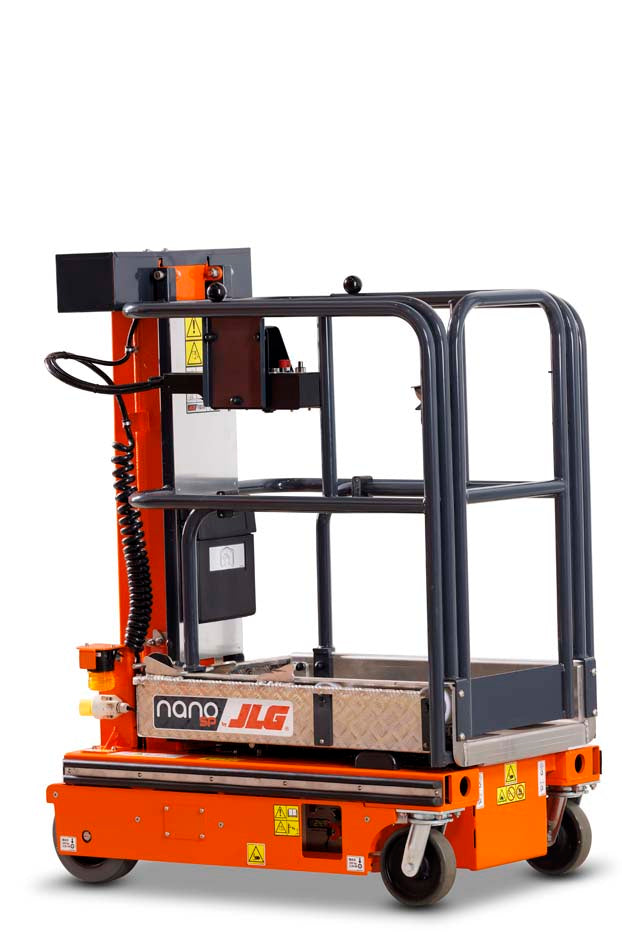

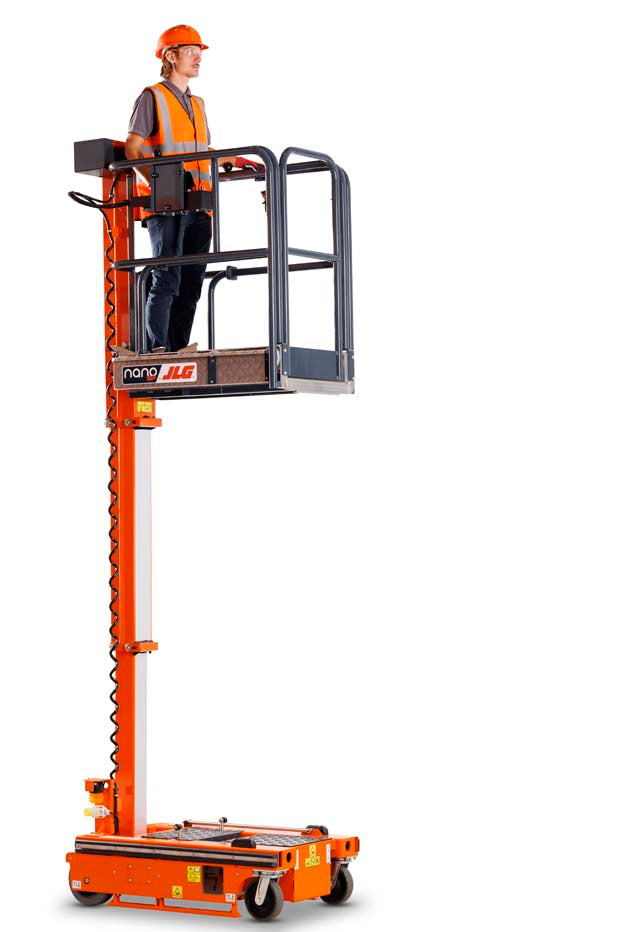

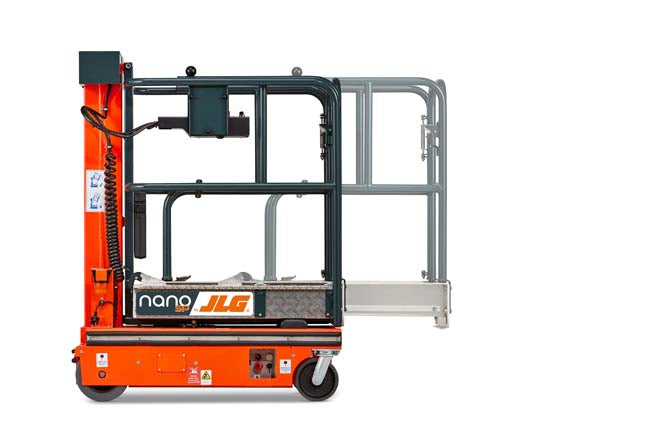

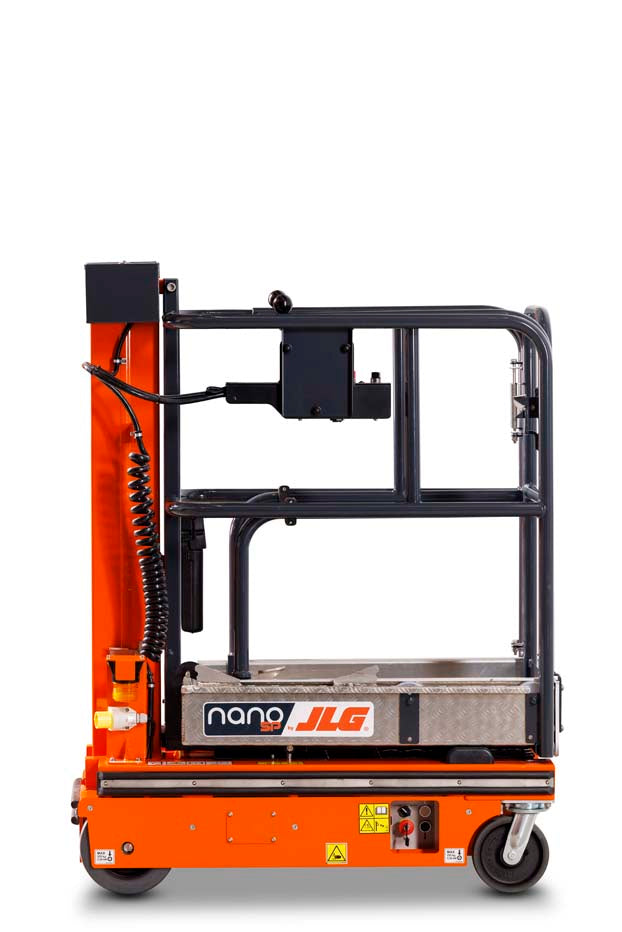

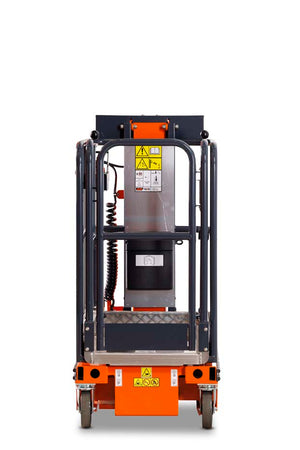

Nano SP Low Level Powered Access Scissor Lift
