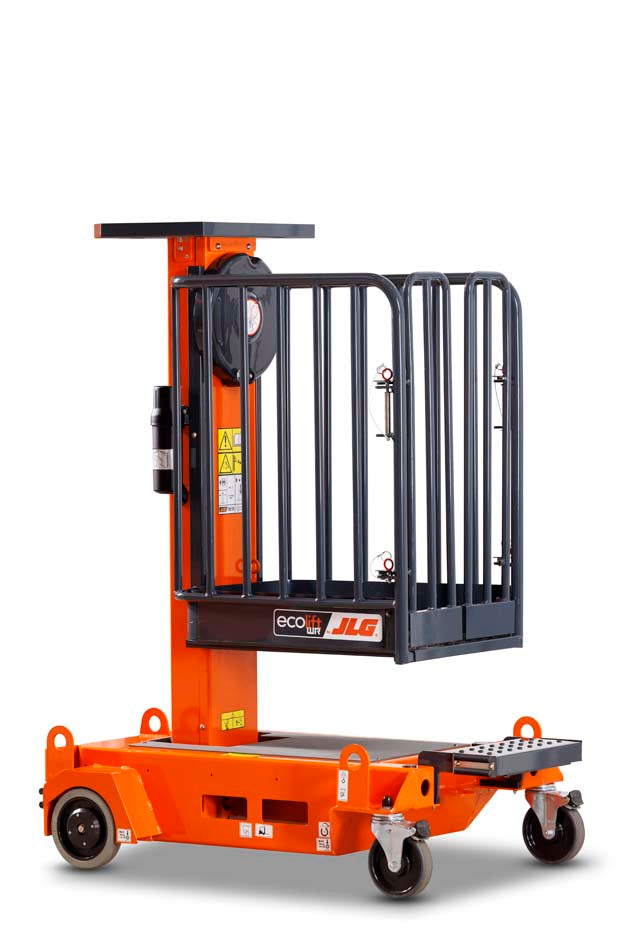

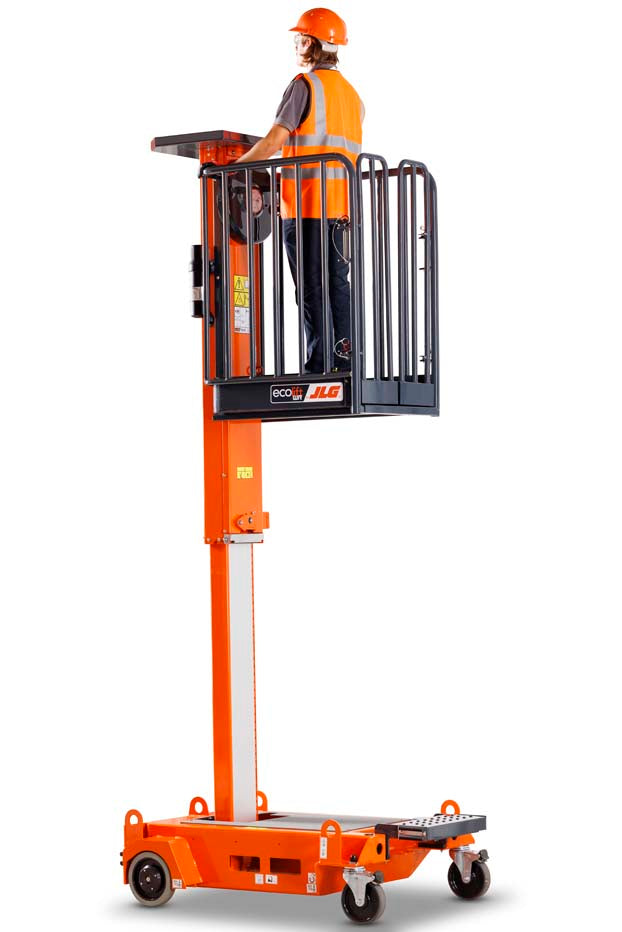

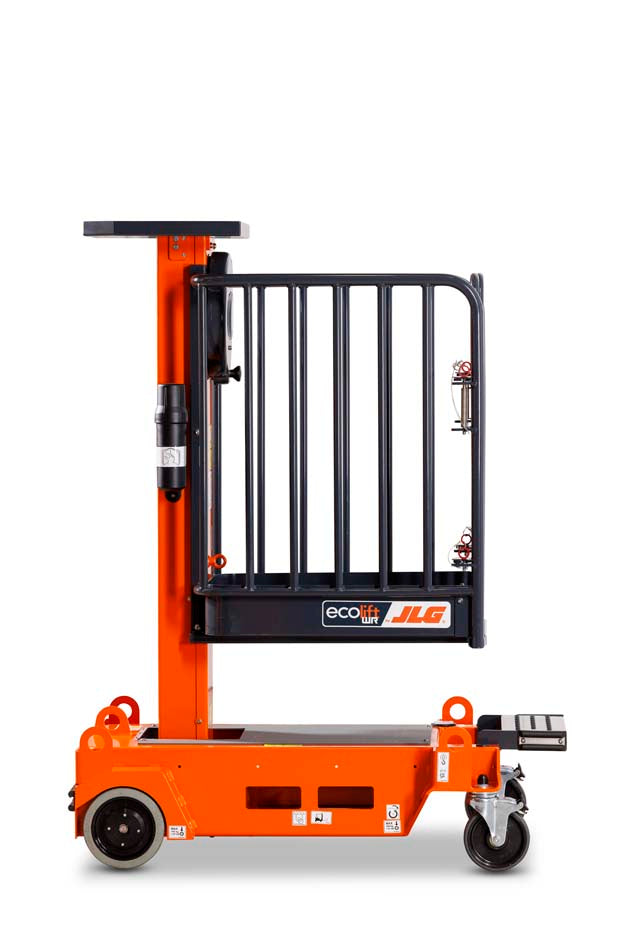

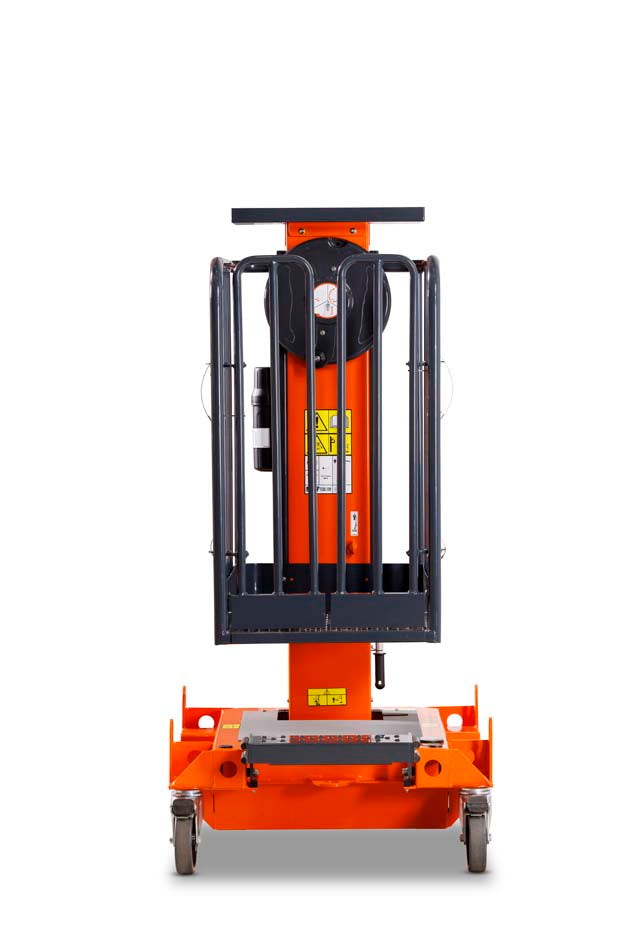

EcoLift WR Outdoor Non-Powered Access Platform - 2.2 m

SKU: LJLPO-0002  |  Model: Ecolift WR
£7,701.32
£6,417.77

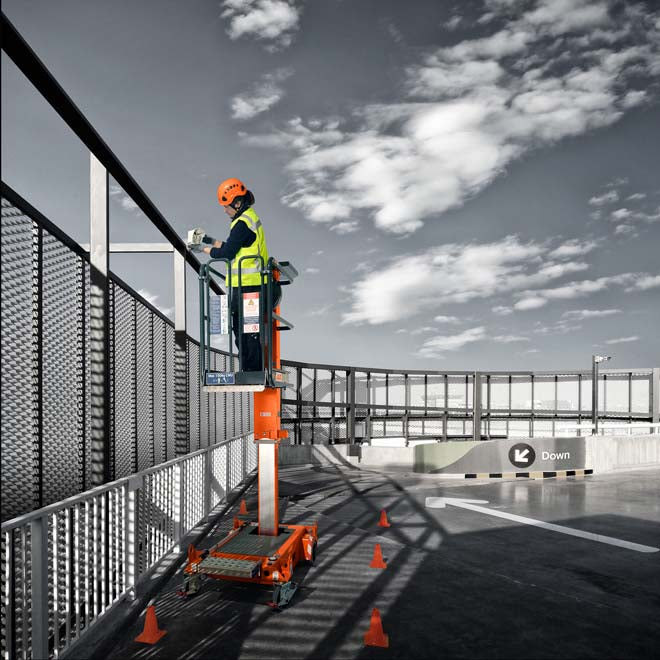

The EcoLift WR is a non-powered eco solution with minimal need for maintenance. Accessing heights of 2.2m this eco friendly platform can be used indoors and outdoors for a number of tasks.

  • Weight
    335 KG
  • Manufacturer
    JLG
  • Product Material
    Aluminium
  • Model Number
    Ecolift WR
  • Platform Height
    2.2 m
  • Platform Dimensions
    0.85 x 0.64 m
  • Working Height
    4.2 m
  • Closed Dimensions
    0.95 x 1.28 x 1.94 m (W x L x H)
  • Additional Information
    Working Footprint: 1.28 x 0.95 m
    Safe Working Load:150 kg
    Maximum Manual Force: 200 N
    Maximum Gradient For Operation: 3 Degrees
    Maximum Wind Force: Internal & External Use (12.5 m/s)
    Maximum Castor Point Load: 245 kg (2.4kN)
    Maximum Wheel Force: 245 kg
    Power Sound Level: Less than 70 Dba
